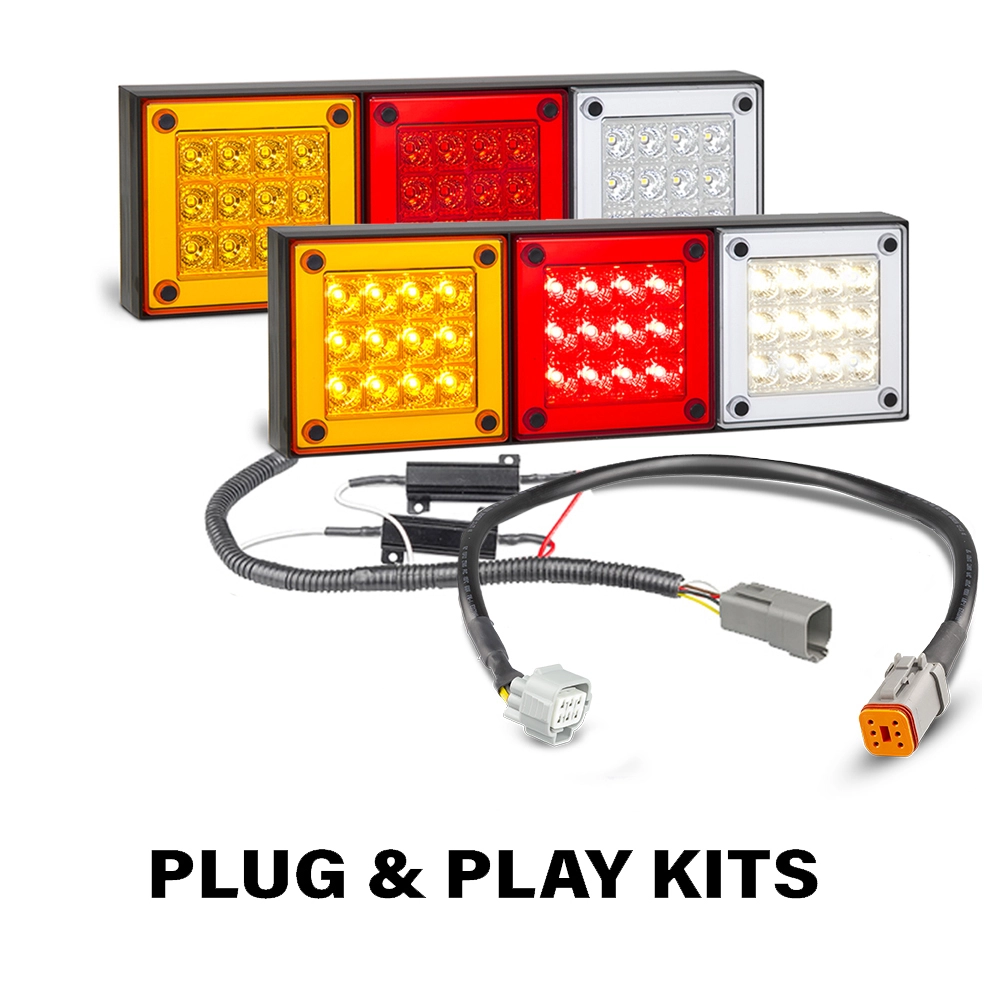

280GARWM Plug & Play Kit Single Cab Cruiser NO Licence Plate Lights 12v Only 12VDC Only

Stock Code

Start Date

Stop Date

PATCHNAVARAT-NP300

2013

2019

PATCHCOLORADO

2017

2019

PATCHD-MAX

2012

2019

PATCHL-CRUISER

 2007

2019

PATCHTRITON-MN

2015

2019

PATCHTRITON-MQ

2015

2019

PATCHRANGER/BT50

 2011

2019

PATCHHILUX

2015

2019



Features / Specifications

  • Adapted to Fit Most Popular Brands of Vehicle Trays
  • Prewired with 2 x Load Resistors
    and Terminated with DT04-6P Male Connector
  • Combine with Applicable Patch Lead
  • IP67 100% Water proof
  • 12 Volt
  • 5 Year Warranty
  • Non ADR Compliant
  • 282mm x 95mm x 28mm




Fitting Instructions

Horizontally surface mount using bolts in back of lamp, run wire and plug through 10mm hole in fixing surface. Please refer to ADR 13/00 for mounting instructions.

Patch Leads to suit the following vehicles; Ford Ranger, Mazda BT50, Isuzu D-Max, Toyota Landcruiser, Toyata Hilux, Mitsubishi Triton MN/MQ

Technical Drawings

Our patch lead system is designed to allow simple and easy conversion from traditional incandescent globes to modern LED rear lighting on popular ute/tray and truck models. This system is very flexible and mostly plug n play meaning no crimping or soldering depending on the setup you desire. Below are a few examples of how you can use this system on your vehicle. If you require any further assistance, please call or email us.

1. Using prewired lamp and patch lead to vehicle loom.

2. Using prewired lamp and hard wire to vehicle loom.

3. Using LED lamp with bare ends and patch lead to vehicle loom.

SKU LEDSO280ARWM2LR450EXTLCR
Brand LED AUTOLAMPS
Shipping Weight 0.4000kg
Shipping Width 0.370m
Shipping Height 0.080m
Shipping Length 0.130m
Shipping Cubic 0.003848000m3
