Features / Specifications

• Adapted to Fit Most Popular Brands of Vehicle Trays
• Pre-wired with 2 x Load Resistors
  and Terminated with DT04-6P Male Connector
• Combine with Applicable Patch Lead
• IP67 Rated
• 12 Volt
• 5 Year Warranty
• Non-ADR Compliant
• 370mm x 135mm x 40mm


Fitting Instructions

Horizontally surface mount using bolts in back of lamp, run wire and plug through 10mm hole in fixing surface. Please refer to ADR 13/00 for mounting instructions.

Patch Leads to suit the following vehicles; Ford Ranger, Mazda BT50, Isuzu D-Max, Toyota Landcruiser, Toyata Hilux, Mitsubishi Triton MN/MQ

Technical Drawings

Features / Specifications

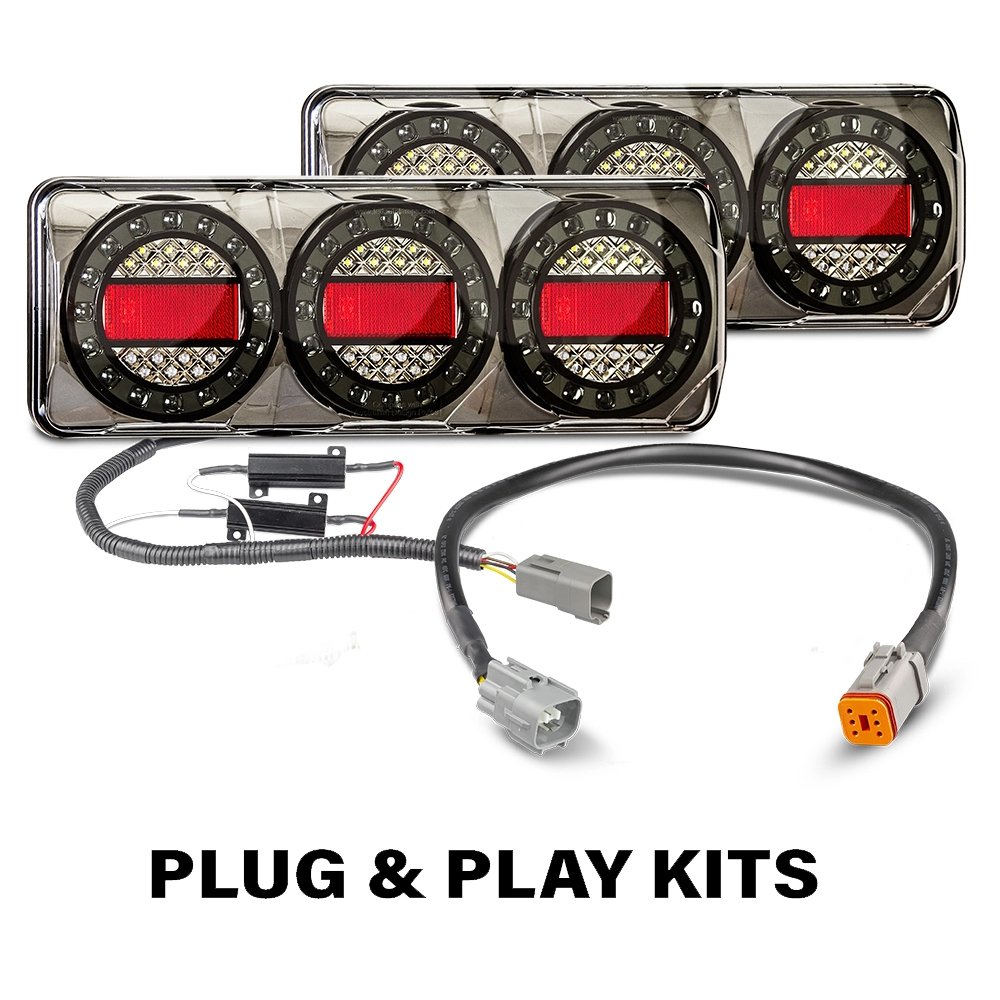

• Complete Tray Fit out with Patch Lead
• Plug in connection
• 600mm cable length
• No wiring or splicing


Fitting Instructions

Patch Leads available for the following vehicles;

Suits Ford Ranger,
Suits Holden Colorado
Suits Mazda BT-50,
Suits Nissan Navara
Suits Isuzu D-Max,
Suits Toyota Landcruiser,
Suits Toyota Hilux,
Suits Mitsubishi Triton MN/MQ,
Suits Hino,
Suits Isuzu,
