RHS, STOP/TAIL/INDICATOR/REVERSE/REFLECTOR, MULTIVOLT, WHITE BOX, SEQUENTIAL INDICATOR, DIFFUSED TAIL LIGHT, 284 X 100 X 37MM, DT04 CONNECTOR, ECE APPROVED

Features / Specifications

• Adapted to Fit Most Popular Brands of Vehicle Trays

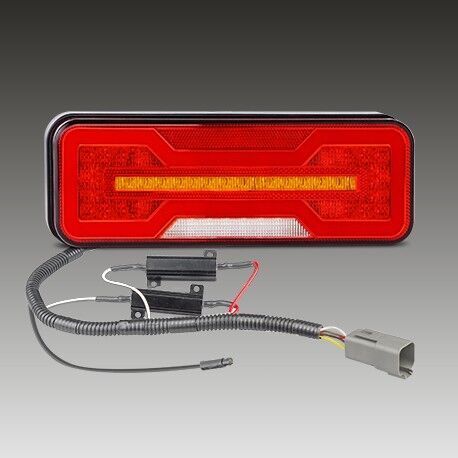

• Prewired with 2 x Load Resistors
  and Terminated with DT04-6P Male Connector
• Combine with Applicable Patch Lead
• IP67 Rated
• 12 Volt Only
• 5 Year Warranty
• ECE Approved Lamp

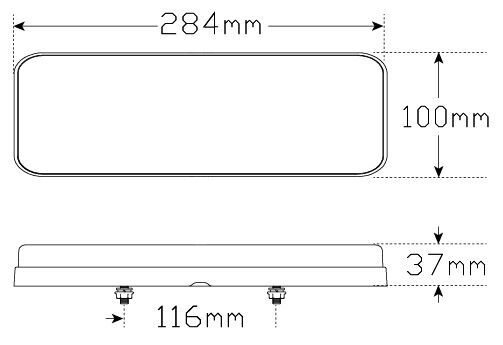

• 284mm x 100mm x 37mm

  NOTE: When using load resistors in a vehicle that has lamp failure monitoring, failure of the lamp will not be detected.



Fitting Instructions

Surface mount using bolts in back of lamp, run wire and plug through 10mm hole in fixing surface. Load resistors must be mounted on metal surface, the module can reach temperatures of up to 170 Celsius. Please refer to ADR 13/00 for mounting instructions.

Patch Leads to suit the following vehicles; Ford Ranger, Mazda BT50, Isuzu D-Max, Toyota Landcruiser, Toyata Hilux, Mitsubishi Triton MN/MQ, Holden Colorado, Nissan Navara, Volkswagen Amarok, Mercedez-Benz X-Class.



Part No.
SO284LHS	Left Hand Side, Bulk
SO284RHS	Right Hand Side, Bulk
.
LED Qty	TBA
Cable	45cm, 2 x LR12, DT04-6P Male Plug
Draw	Stop	Tail	Ind	Rev
@13.8V	0.24A	0.03A	0.27A	0.17A



Disclaimer:
When towing a vehicle with a BCM (Body Control Module), such as the Ford Ranger, and using sequential tail lights, there may be an issue where the lights only partially illuminate. This typically occurs when mounting sequential tail lights to a caravan, not the towing vehicle. If you have any questions or concerns, please feel free to contact our team.

SKU	LEDSO284RHS
