IMPORTANT: THIS LISTING IS A PAIR TAIL LIGHT.

CLICK HERE IF YOU ARE LOOKING FOR A PLUG & PLAY SINGLE

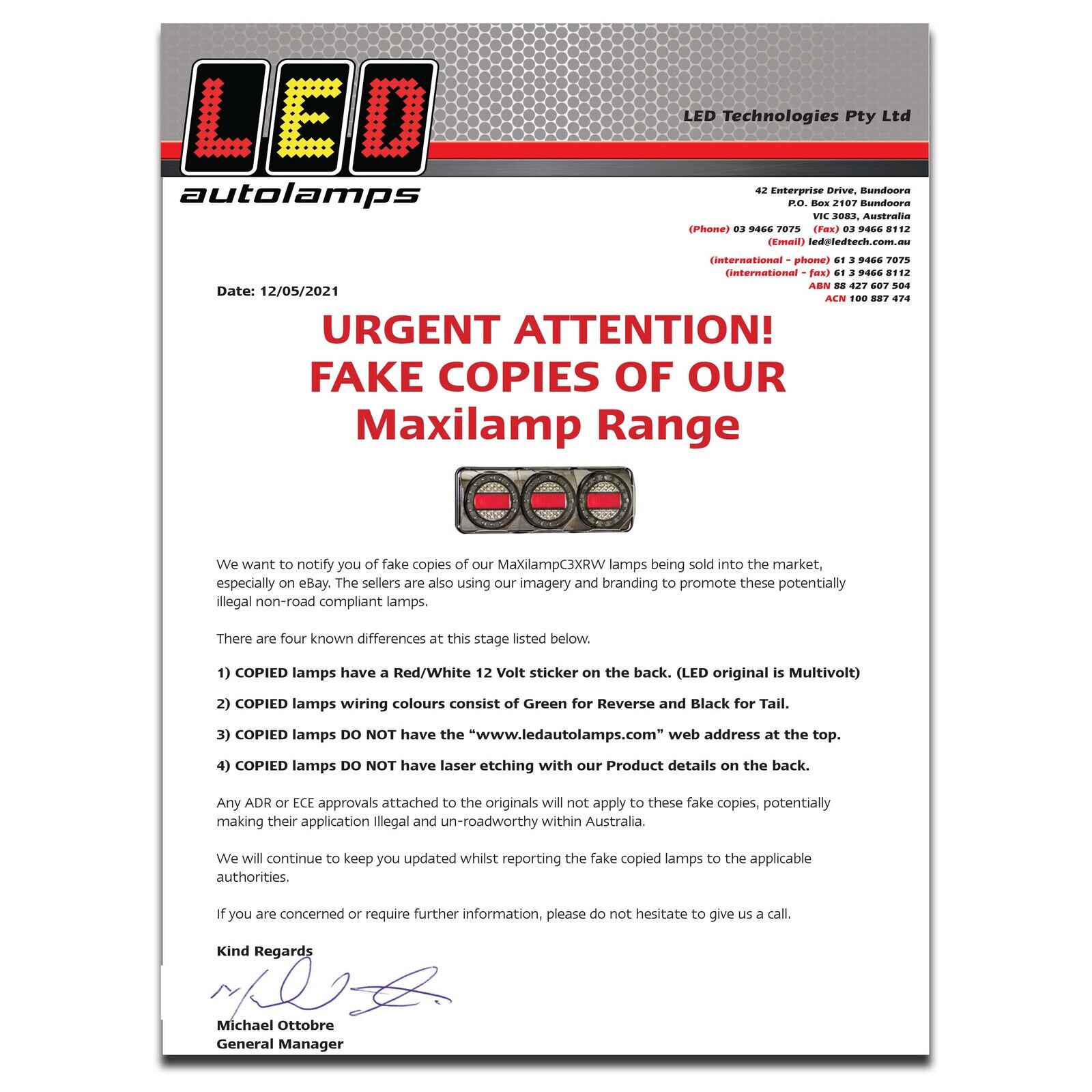

***Don't be fooled by sellers offering "Genuine" Maxilamps at cheaper prices. Our entire Maxilamps range is sourced directly from LED Autolamps who are the original (OG) manufacturer of the Maxi Lamp range.***

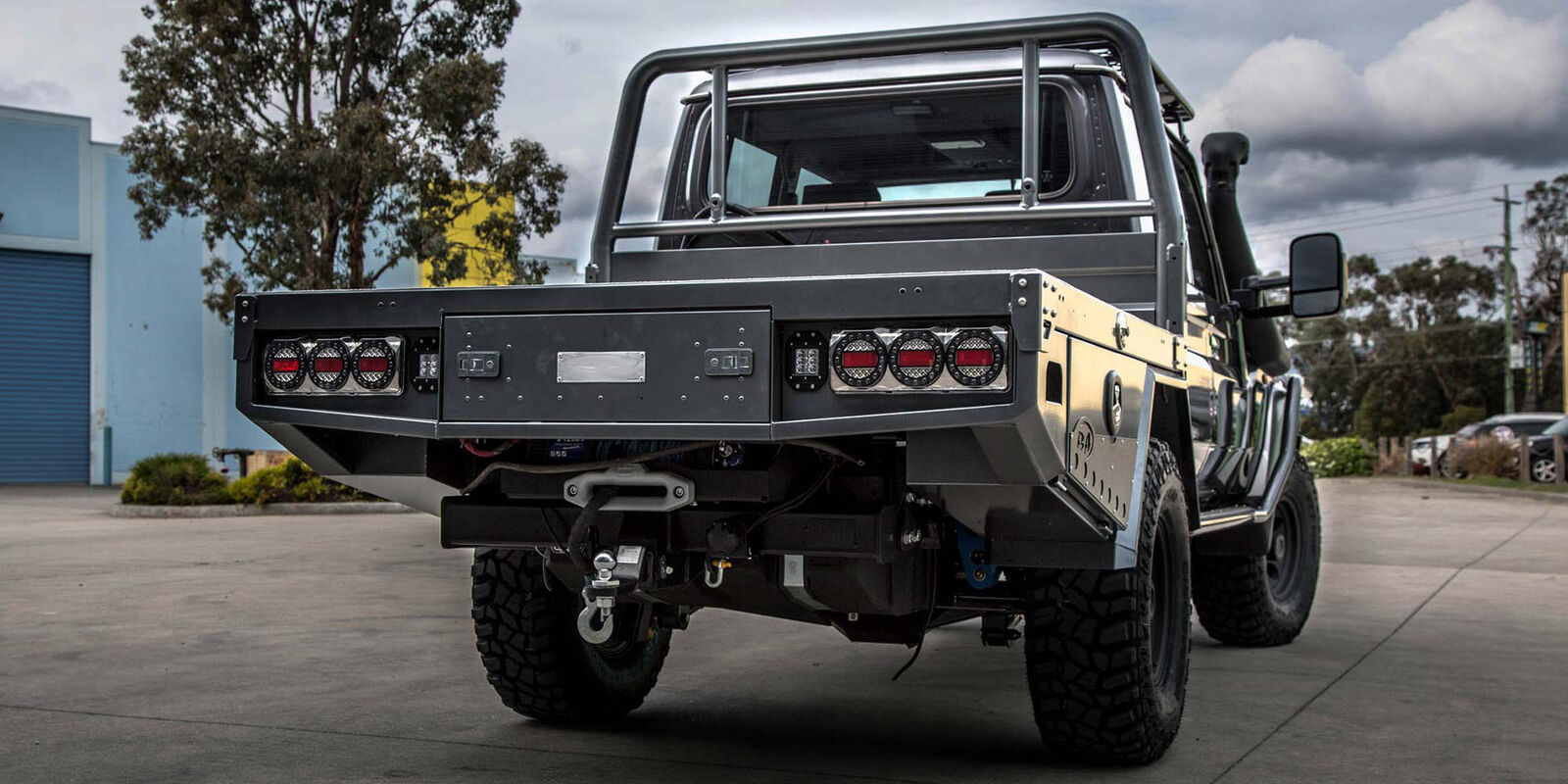

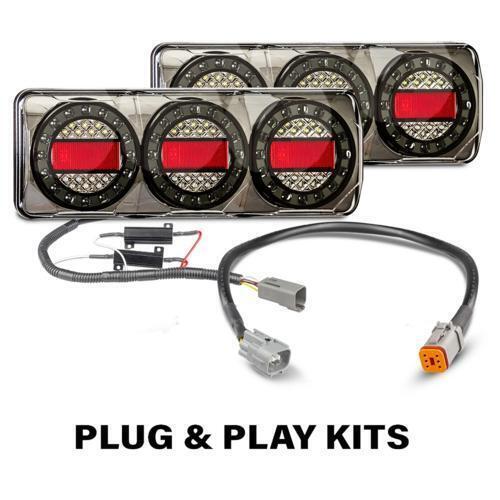

Maxilamp C3 Plug & Play LED Tail Light Kit

Kit Includes:

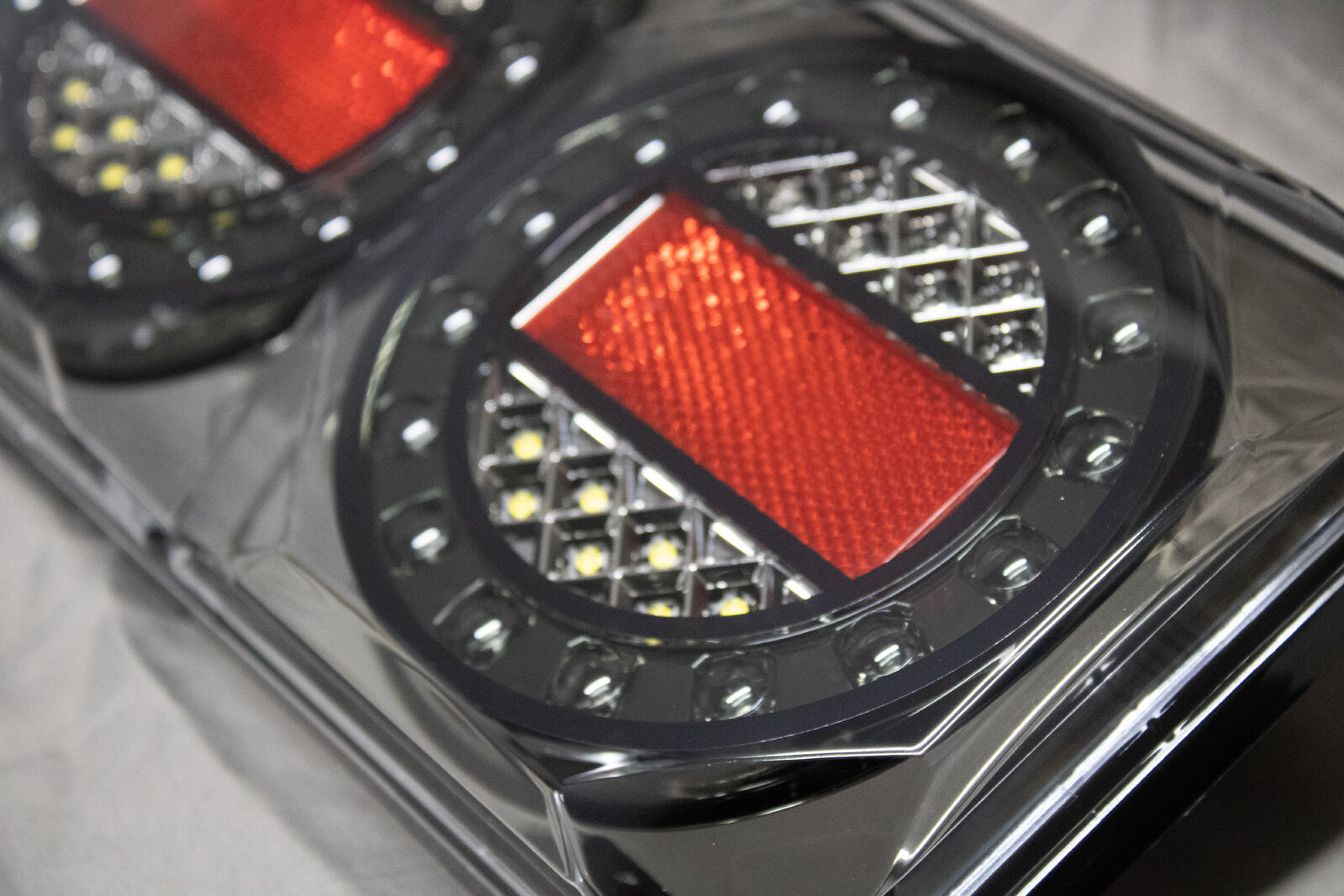

- 2x LED Autolamps SOMAXI2LR/450B (MaxiLampC3XRW with resistors) Stop/Tail/Indicator/Reverse Lamp Assembly.
- 2x Vehicle-specific Patch Leads
- 2x License Plate Lights (LED41BLM)


Features:
- Comes with Pre-Wired Resistors and DT04-6P Male Connector.
- Patch leads plug straight into the existing tail light wiring loom and have a DT04-6P Plug on the other end.
- Adapted to fit most popular brands of vehicle trays.
- IP67 Rated, 12 Volt, 7 Year Warranty, Non-ADR Compliant.

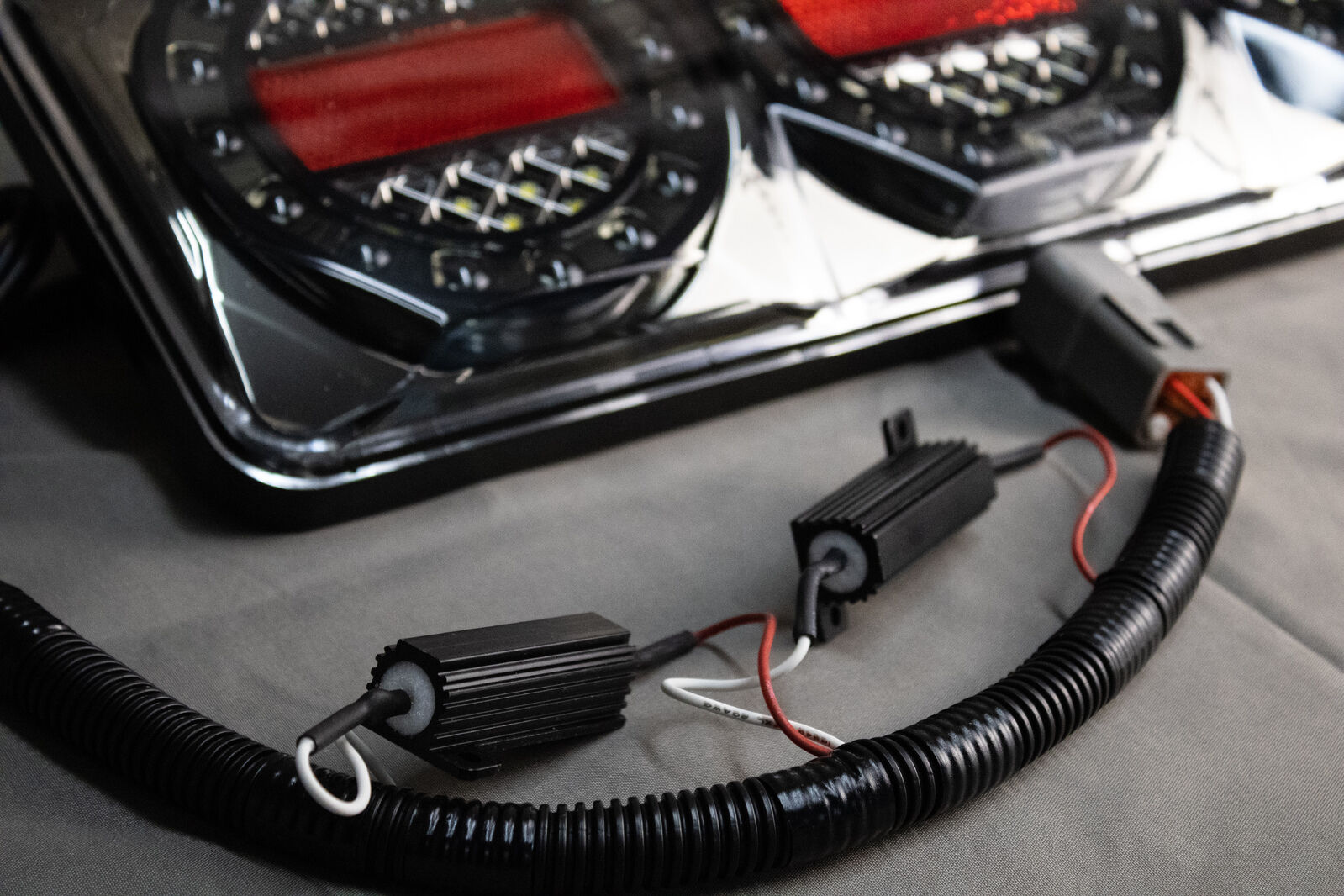

- Pre-wired with 2 x Load Resistors and terminated with DT04-6P Male Connector.

Fitting Instructions:
1. Connect the vehicle-specific patch leads to the existing loom on the vehicle.
2. Connect Maxilamps to the patch leads.
3. Mount the Maxilamp tail lights and pre-wired resistors and secure wiring to suit.

Specifications:
- Dimensions: 370mm x 135mm x 40mm

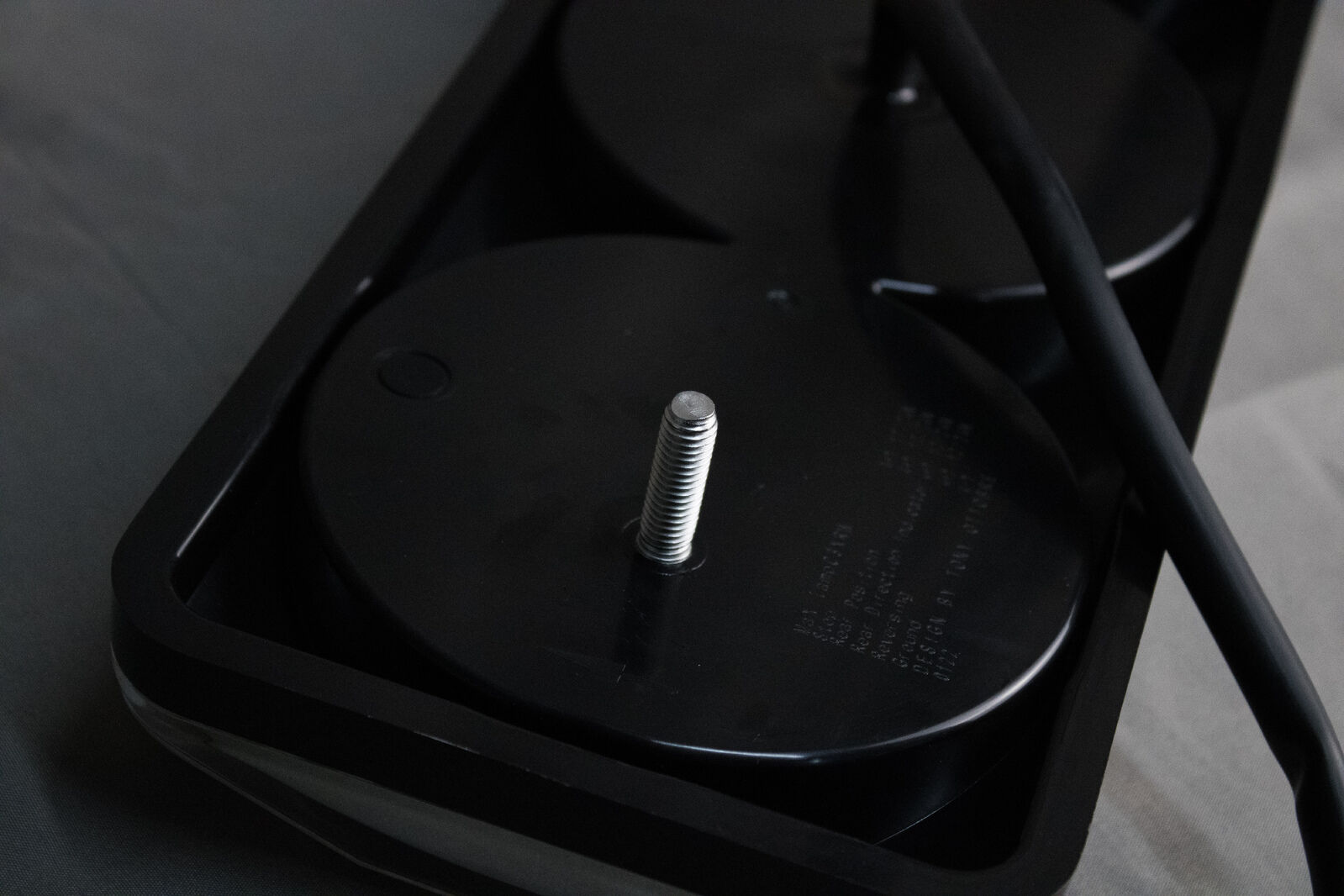

- Horizontally surface mount using bolts in the back of the lamp, run wire and plug through a 10mm hole in the fixing surface.
- Please refer to ADR 13/00 for mounting instructions.

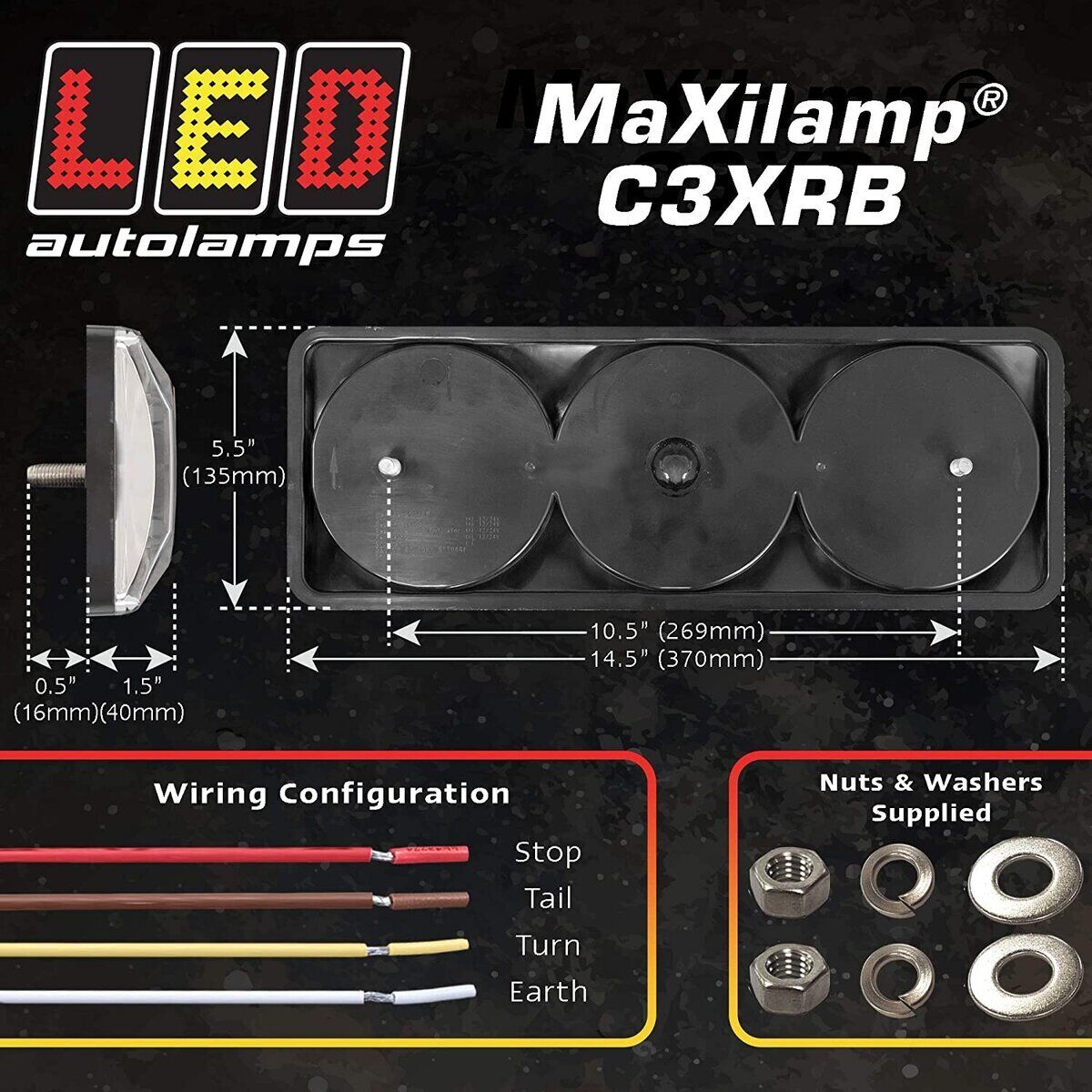

Technical Drawings

OzLED is the place to find patch leads to suit a wide range of vehicles

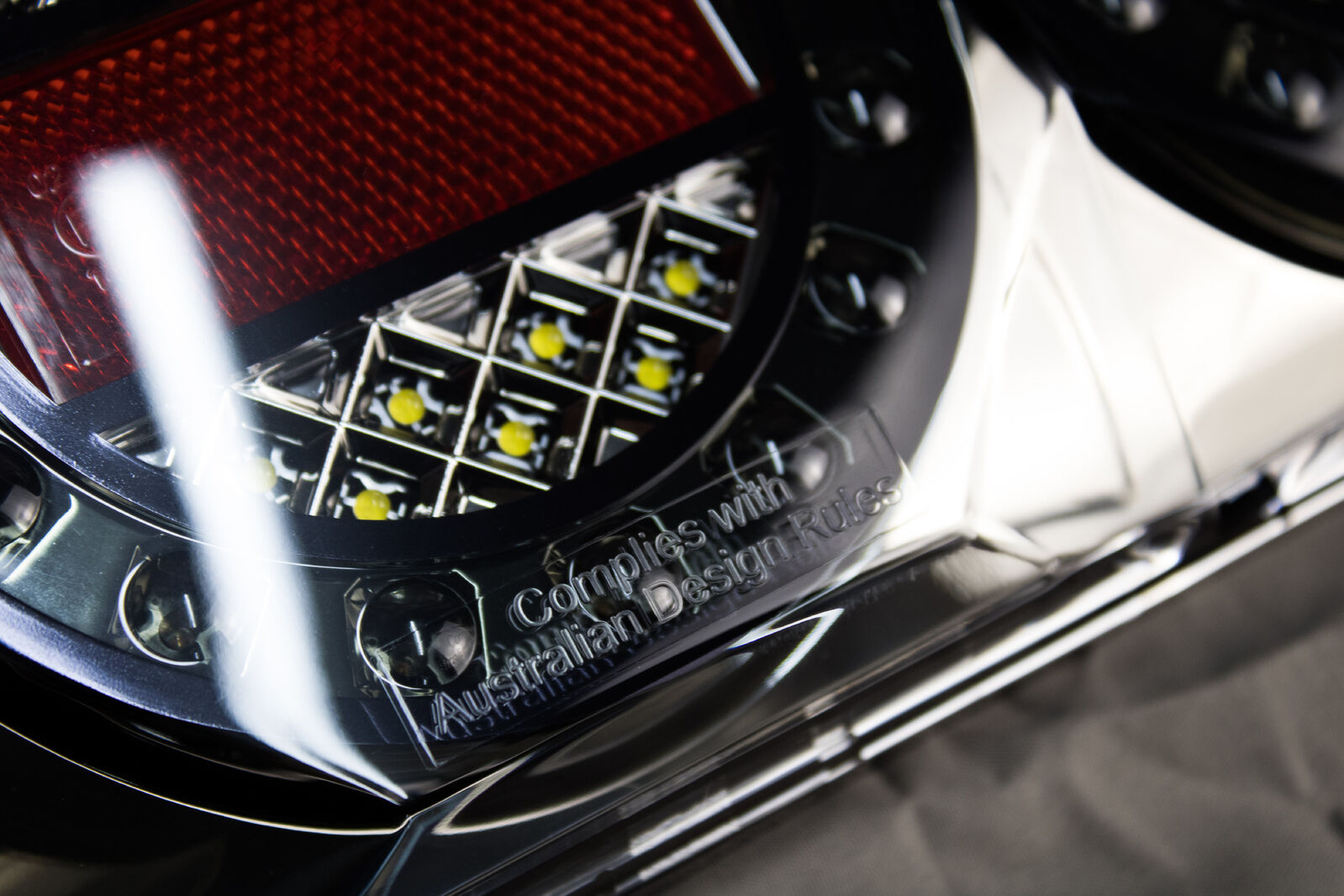

The lights themselves are ADR approved. However, Plug and Play patch lead systems don't fall within the ADR and this due to the Load Resistors built into the harness. Load Resistors are designed to stop the vehicle from flashing indicators quickly when it detects a drop in resistance (ie a blown bulb) and thus renders that function of the vehicle obsolete. If you have any questions regarding this, don’t hesitate to reach out to the team.
