Features / Specifications

• Retrofit the same shape and design
• Industry Standard Mounting Holes
• Clip-in lens concealed screws
• ADR Road approved
• IP67 100% Waterproof
• Multi-voltage 12-24 Volt
• 60mm x 39.5mm x 32mm

Fitting Instructions

Surface Mount - Screw Fix

Mount the bracket horizontally onto a flat surface, run wires through the back, and clip the lens into place. For mounting instructions, please refer to ADR 13/00.
Lens Removal: Using your thumb, push the rear of the lens out to release it from the bracket.

Wire Colours: Brown - Power, Yellow - Indicator, White - Earth.

Function	Rear End Outline Marker
Part No.
50RM	40cm cable, Blister Single
50RMCSB	20cm cable/plug, Single Bulk
.	.
.
LED Qty	2
Cable	40cm/20cm with plug
Draw	@13.8V	@28V
	0.03A	0.03A
Approvals	Function	CTA
ADR	Rear End	061622

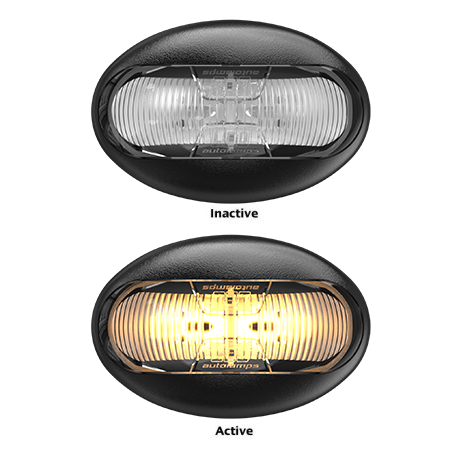

Function	Side Direction
Part No.
50AM	40cm cable, Blister Single
50AMCSB	20cm cable/plug, Single Bulk
.	.
.
LED Qty	2
Cable	40cm/20cm with plug
Draw	@13.8V	@28V
	0.03A	0.03A
Approvals	Function	CTA
ADR	Side Direction	061600

Function	Side Marker
Part No.
50ARM	40cm cable, Blister Single
50ARMCSB	20cm cable/plug, Single Bulk
.
.
LED Qty	2
Cable	40cm/20cm with plug
Draw	@13.8V	@28V
	0.03A	0.03A
Approvals	Function	CTA
ADR	Side Marker	061621

Function	Front End Outline Marker
Part No.
50WM	40cm cable, Blister Single
50WMCSB	20cm cable/plug, Single Bulk
.	.
.
LED Qty	2
Cable	40cm/20cm with plug
Draw	@13.8V	@28V
	0.03A	0.03A
Approvals	Function	CTA
ADR	Front End	061620
