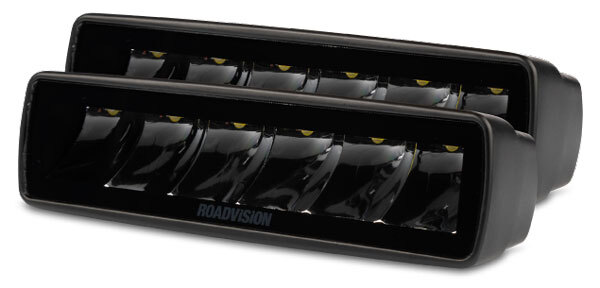

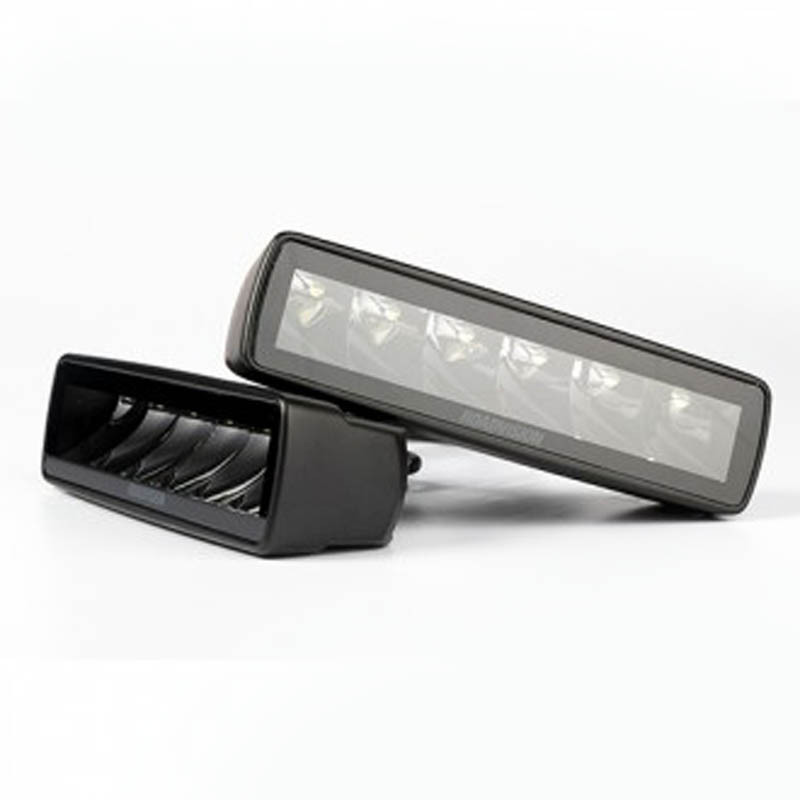

LED Driving Light Set 2 x Spot Beams 10-30V 6 x Osram P8 LEDs EA 1975lm EA IP67 157x60x50mm Roadvision

The Roadvision RDL2870 Stealth Series LED driving light kits are proof great things come in small packages. With advanced optics producing a 925m spot beam per set, the Stealth Series combines superior performance in a durable, maintenance free package. Ideal for smaller SUV and passenger vehicles, the compact 6” slim line design allows installation into the tightest applications without compromising on performance whilst the smoked lens and blackout mounting hardware provide a STEALTH on vehicle look.



RANGE FEATURES

• RDL2870 Series LED Driving Light set produce 4682lm of instant light output
• 5W Osram LED’s produce super white light close to daylight
• Multi-volt 10-30V DC input & super low current draw
• 50,000 hour LED lifespan with solid state technology
• Light weight tough die-cast aluminium housing & polycarbonate lens
• Simple 2 wire installation with integrated Deutsch plug
• Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved

DIMENSIONS



Part Number	RDL2870
Beam Pattern	Spot
Maximum Lumens	4682lm per set
Maximum Lux @ 10m	2140lx per set
Maximum Beam Distance	925m per set
Input Voltage	10-30 VDC
Maximum Watts	70W per set
Number of LEDS	6 x 5W Osram each
Current Draw @ 13.8V	3.4-5.6 Amps per set
Lens Construction	Polycarbonate
Housing Construction	Aluminium
Wiring	2 PIN Deutsch Plug
Dimensions AxBxC	157 x 50 x 60mm

Specifications

BEAM DIAGRAM

SKU	RDL2870
Brand	ROADVISION
Shipping Weight	0.2000kg
Shipping Width	0.150m
Shipping Height	0.150m
Shipping Length	0.150m
