IMPORTANT NOTE: This item is stocked at supplier warehouse. Short delays of up to a week can be expected on this item.

Rectangle Stop/Tail/Ref Sequential Indicator Combination Ind – 0.2A @ 13.8V DC S/T – 0.2/0.05A @ 13.8V DC Rev – 0.2A @ 13.8V DC Fog – 0.3A @ 13.8V DC

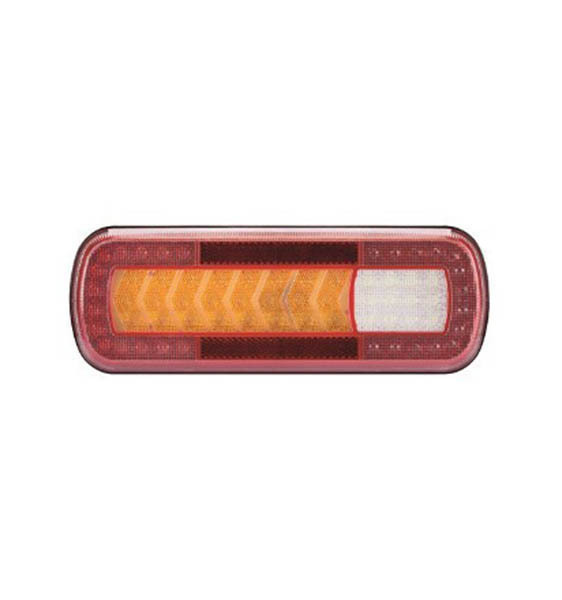

Description LED Combination Lamp 10-30V Stop/Tail/Ind/Rev/Fog/Ref 283x100x29mm Sequential Indicator ROADVISION’s BR280 Series LED combination lamps feature the latest sequential indicator technology! Designed as an all-in-one combination lamp, the BR280 series delivers stop/tail, reverse, fog, retro reflector and a sequential indicator that flashes progressively offering an increased level of safety. Constructed with durable polycarbonate lenses and housings, the BR280 Series will survive the toughest environments. Designed with a multi-fit mount, they can be easily attached to horizontal or vertical mounting surfaces with a simple surface mount design or attached using the twin rear stud mount. Dust & water proof to IP67 and totally maintenance free, with a life span rated at 100,000 hours, ROADVISION’s BR280 Series is a complete FIT and FORGET Solution. Product features: Multi-volt 10-30V DC input & low current draw Sequential Indicator function Brighter than conventional incandescent systems 100,000 hour LED life span with solid state technology Maintenance free Sealed polycarbonate lens & housing IP67 water and dust proof Supplied pre-wired with 500mm sheathed cable Simple surface or twin bolt mount design Retro reflector integrated into lens ADR/ECE approved for all functions Product specifications: Packaging Blister Voltage 10-30 V DC Input Mount Surface Weight 0.70kg Dimensions 283 x 100 x 29mm Warranty 5 Years Brand Roadvision Cable Length 500mm Sheathed Number of LED's Indicator - 24 LED’s, Stop/Tail - 14 LED’s Dimension 11x6x30cm Stop/Tail Approval Stop/Tail – ECE R1-S1-E9-02 16532 Rev Approval Rev – ECE AR-E9-00 16532 Ref Approval Ref – ECE IB-E9-02 16532 Fog Approval Fog – ECE F1-E9-00 16532 DIMENTIONS 11x6x30cm Current Draw Amps Ind, S/T & Rev 0.2A Housing & Lens Polycarbonate Ind Approvals ECE 2a-E9-01 16532, Maintenance Free Yes Lamp Functions Stop/Tail/Seq. Indicator/Reflector Indicator Function Sequential Indicator function Mounting Hole Cut Out 116mm Specifications SKU BR280ARW Barcode # 9340330017868 Brand Roadvision Shipping Weight 0.5000kg

Specifications

Part Number BR280ARW
Description Rectangle Stop/Tail/Ref Sequential Indicator Combination
Functions Stop/Tail/Sequential Indicator/Reflector/Fog
Voltage Input 10-30V
Number of LED's



Indicator - 24 LED’s
Stop/Tail - 14 LED’s
Reverse - 12 LED’s
Fog – 14 LED’s
Current Draw Amps



Ind – 0.2A @ 13.8V DC
S/T – 0.2/0.05A @ 13.8V DC
Rev – 0.2A @ 13.8V DC
Fog – 0.3A @ 13.8V DC
Dimensions AxBxC 283x100x29mm
Lens Construction Polycarbonate
Housing Construction Polycarbonate
Mounting Type Surface Mount
Mounting Hole /Cut Out 116mm
Cable Length 500mm Sheathed
ADR Approval




Ind – ECE 2a-E9-01 16532
Stop/Tail – ECE R1-S1-E9-02 16532
Rev – ECE AR-E9-00 16532
Fog – ECE F1-E9-00 16532
Ref – ECE IB-E9-02 16532



SKU BR280ARW
Brand ROADVISION
Shipping Weight 0.2000kg
Shipping Width 0.150m
Shipping Height 0.150m
Shipping Length 0.150m
