IMPORTANT NOTE: This item is stocked at supplier warehouse. Short delays of up to a week can be expected on this item.

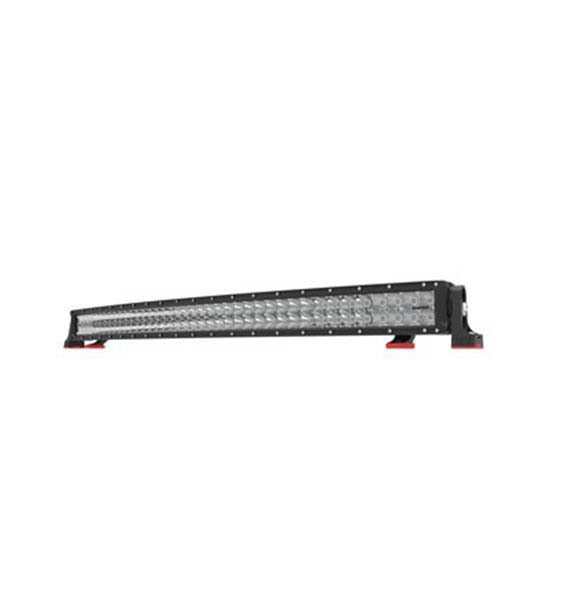

LED Bar Light 42" DCX2 Series Curved Combo Beam 10-30V 80 x 3W Osram High Lux LEDs 240W 21600lm IP67 Slide & End Mounts Roadvision Black Label

The Roadvision DCX2 Series are the next generation in dual row curved LED light bars. Producing up to a massive 25920lm of light output, the DCX2 Series deliver brute power and intense light output with a perfect match of advanced optical design and 3W Osram Hi-Lux LEDs. Designed to follow the contour of your vehicle, the curved designed provides greater illuminating coverage, giving you a better field of view in any open road or off road situation. Featuring the latest soft start, PWM dimming and advanced thermal management technology from Roadvision, the DCX2 Series is available in combination beam patterns from 22” to 50” providing a perfect mix of forward penetration and additional roadside illumination from the curved radius housing. Supplied with both low profile adjustable slide mounts and Roadvision’s new 9 position adjustable anti-vibration mounting system, the DCX2 Series also features a new ultra slim 65mm deep housing providing greater mounting flexibility. The DCX2 Series by Roadvision, brute power from the biggest bars in our line-up.



RANGE FEATURES

  • DCX2 Series dual row curved LED bar lamps produce up to 25920lm of light
  • 3W Osram Hi-Lux LED’s produce super white light close to daylight
  • Curved bar produces a wider beam angle for improved roadside illumination
  • Multi-volt 10-30V DC input & super low current draw
  • 50,000 hour LED lifespan with solid state technology
  • Soft start, PWM dimmable & advanced thermal management technology
  • Light weight tough die-cast aluminium housing & polycarbonate lens
  • Water & dust proof IP67 rated
  • Simple 2 wire installation Deutsch/ATP plug & optional plug & play dimming controller
  • 9 position adjustable anti-vibration end mount system & low profile slide mounts
  • Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved

Specifications

Part Number RBL6420C
Description DCX2 Series 42" Curved Bar 80 LED
Beam Type Combo Beam
Lumens Light Output (Effective) 21600lm
Beam Distance 932m
Total Watts 240W
Light Source 80x3 Watt Osram LED's
Input Voltage 10-30V DC
Current Draw Amps 13.3A @ 13.8V
Dimensions AxBxC 1073x108x78.5mm
Bar Length 42" (1073mm)
Wiring 2 Pin ATP Plug
Lux @ 10m 2171 Lux
Meters @ 1 Lux 466m
Meters @ 0.5 Lux 932m
SKU RBL6420C
Brand ROADVISION
Shipping Weight 0.2000kg
Shipping Width 0.150m
Shipping Height 0.150m
Shipping Length 0.150m
