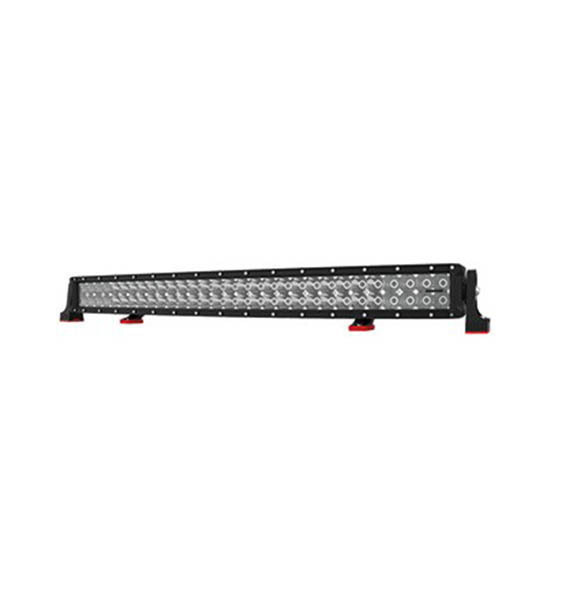

The Roadvision DCX2 Series are the next generation in dual row curved LED light bars. Producing up to a massive 25920lm of light output, the DCX2 Series deliver brute power and intense light output with a perfect match of advanced optical design and 3W Osram Hi-Lux LEDs. Designed to follow the contour of your vehicle, the curved designed provides greater illuminating coverage, giving you a better field of view in any open road or off road situation. Featuring the latest soft start, PWM dimming and advanced thermal management technology from Roadvision, the DCX2 Series is available in combination beam patterns from 22” to 50” providing a perfect mix of forward penetration and additional roadside illumination from the curved radius housing. Supplied with both low profile adjustable slide mounts and Roadvision’s new 9 position adjustable anti-vibration mounting system, the DCX2 Series also features a new ultra slim 65mm deep housing providing greater mounting flexibility. The DCX2 Series by Roadvision, brute power from the biggest bars in our line-up.
Part Number | RBL6320C |
---|---|
Description | DCX2 Series 32" Curved Bar 60 LED |
Beam Type | Combo Beam |
Lumens Light Output (Effective) | 16200lm |
Beam Distance | 818m |
Total Watts | 180W |
Light Source | 60x3 Watt Osram LED's |
Input Voltage | 10-30V DC |
Current Draw Amps | 10.0A @ 13.8V |
Dimensions AxBxC | 818x87x78.5mm |
Bar Length | 32" (818mm) |
Wiring | 2 Pin ATP Plug |
Lux @ 10m | 1674 Lux |
Meters @ 1 Lux | 409m |
Meters @ 0.5 Lux | 818m |
SKU | RBL6320C |
Brand | ROADVISION |
Shipping Weight | 0.2000kg |
Shipping Width | 0.150m |
Shipping Height | 0.150m |
Shipping Length | 0.150m |
