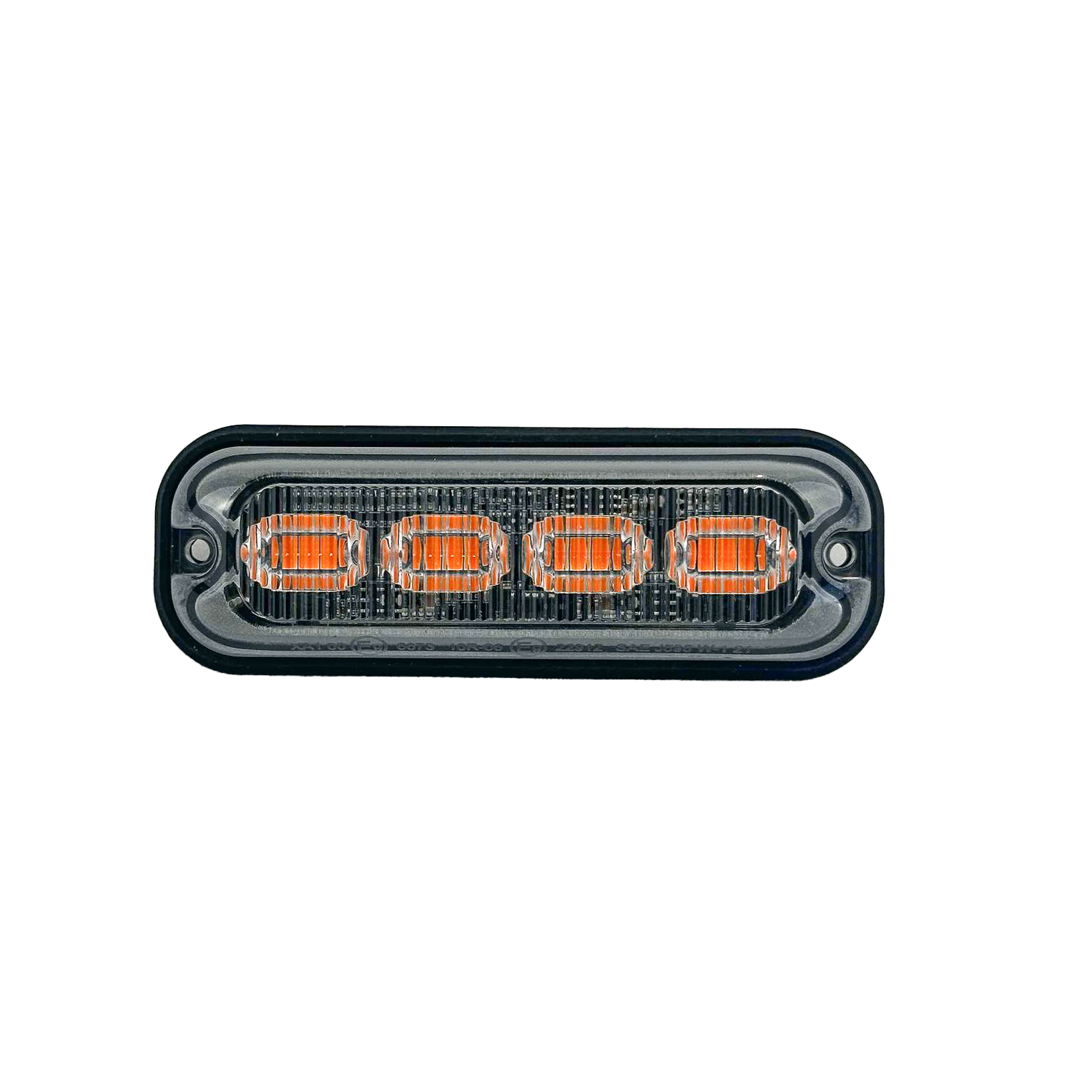

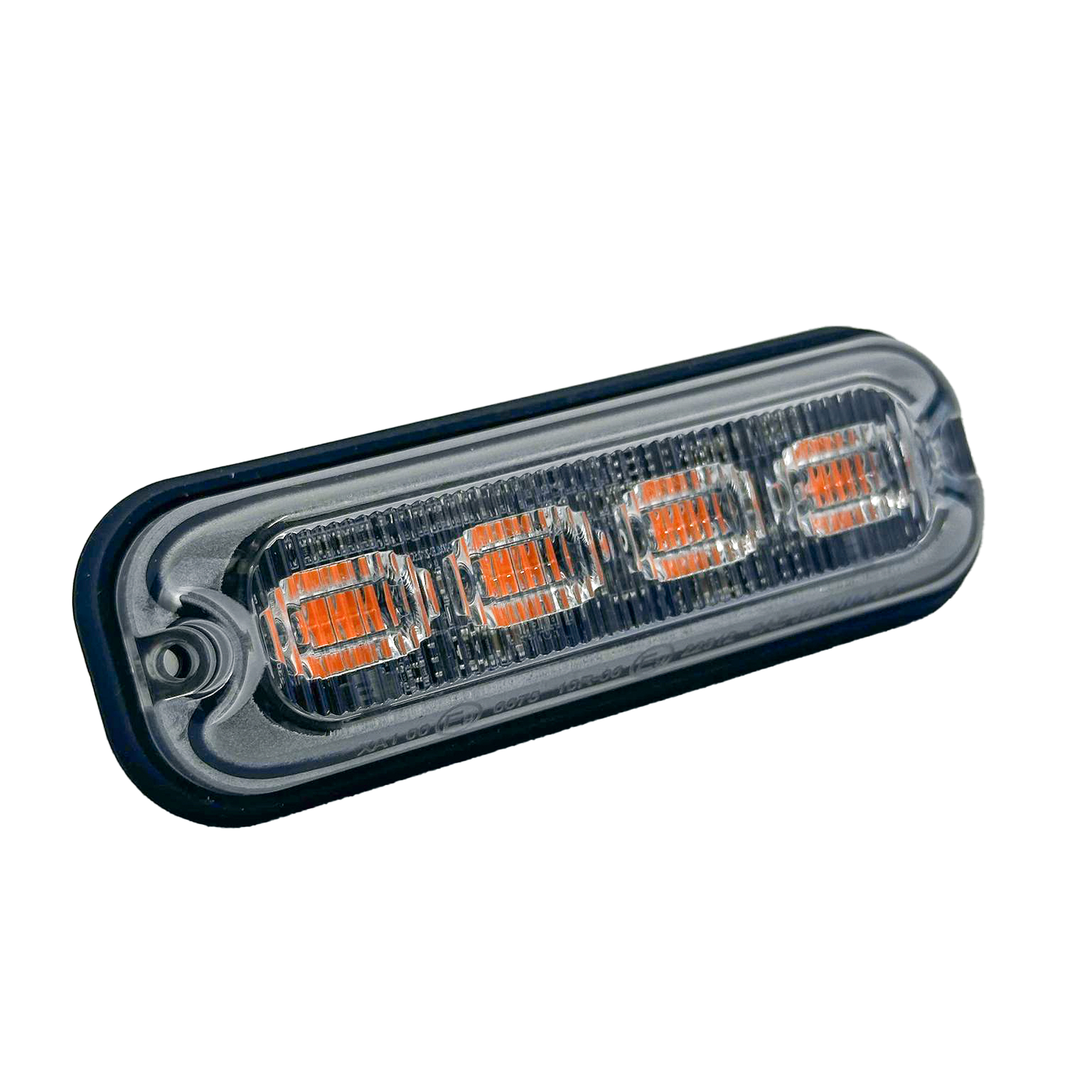

BASE6 LED Warning Light, 4 x 4W LED's, Amber, 10-30VDC, IP69K, SAE J595 / ECE R65 & R10, 90mm X 30mm x 11mm, 19 patterns + Sync / Async

Introducing the BASE6 4 LED Amber Perimeter Light, a top choice for those seeking superior visibility and durability. This high-performance light features an innovative angled design for enhanced off-axis visibility, ensuring maximum safety and awareness. Its robust alloy housing and cutting-edge LED technology make it a reliable, maintenance-free solution for any vehicle.

Key Features and Specifications

BASE6 5-Year Warranty

• Dimensions: 91mm (L) x 23mm (W) x 15mm (H)
• LEDs: 4 Ultra-High Intensity LEDs
• Flashing Patterns: 19+ user-selectable options
• Improved Visibility: Advanced off-axis performance with unique directional reflector optics
• Daytime Performance: Exceptional brightness for all-day use
• Housing: Low profile, heavy-duty alloy construction
• Synchronization: Capable of synchronizing multiple units
• Maintenance-Free: 100% solid state design with no moving parts

Wiring Configuration

• BLACK: Negative ground wire
• RED: Positive wire
• YELLOW: Pattern select (positive trigger) and synchronize function
• WHITE: Simultaneous or alternating flash

Technical Specifications

• Current Draw: 1amp @12vdc / 0.5amp @24vdc
• Certifications: R65, SAE Class 1 & 2, SAE J595
• Voltage: 10-30 multi voltage ready
• Durability: IP69K rated for dust, vibration, and water resistance (highest in the market)
• Temperature Range: Operates efficiently from -40˚C to +60˚C
• LED Lifespan: 100,000 hours with long-life LEDs

Elevate your vehicle's safety and performance with the BASE6 Amber 4 LED Perimeter Light. Its unmatched reliability and advanced features make it the ideal choice for any application.

SKU	B6104AV2
Brand	Base6
Shipping Weight	0.5000kg
Shipping Width	0.230m
Shipping Height	0.080m
Shipping Length	0.050m
